- Global provider of turn-key mechanical and electrical design services and solutions
- Seasoned management team with Silicon Valley background
- Strong, experienced engineering team
- Competitive pricing
- Resources - stable and scalable
Goals
- Quality design services
- Total customer satisfaction
- Meet customer's specifications, requirements, and deliverables
- On-time delivery
- Live project schedules available on-line
- Competitive pricing
Design Skills
- Sheet Metal Stamping - Stage or Progressive
- Precision Machining
- Aluminum Die Casting
- Plastic Injection Molding
- Tooling
CAD/CAM
- Pro/Engineer
- Pro/Mechanica
- SolidWorks
- Inventor
- Catia V5
- Visi-Series - For tooling design
- MasterCAM
Workflow
Sample Projects

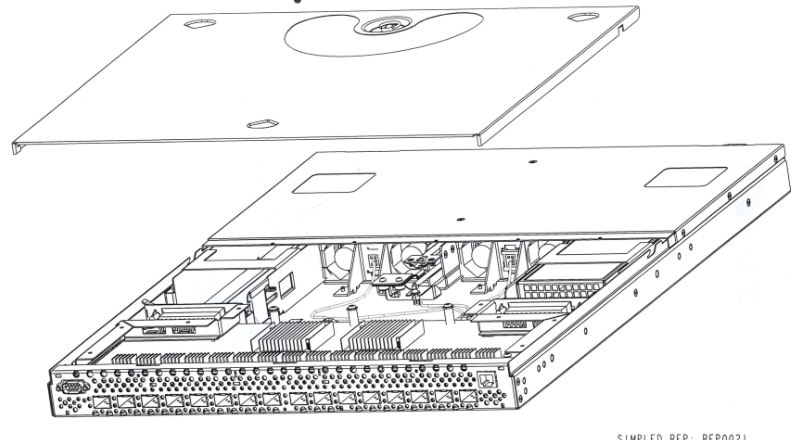

SAN Rack Mount Chassis
Challenge
- No tooling for assembly - all manual
- Minimize mechanical components
- Expensive tooling costg -change not allowed
- Box required to be structurally strong
- Aesthetically appealing
- Progressive die stamping for base and cover
- Built in fastening features in the sheet metal
- Complex design - multiple features in one sheet metal stamping
- Soft tool build for sheet metal verification; SLA prototype for plastic verification
- Structural analysis & Thermal analysis
- ID design - Injection molded plastic bezel
- Fabrication and assembly drawing for production

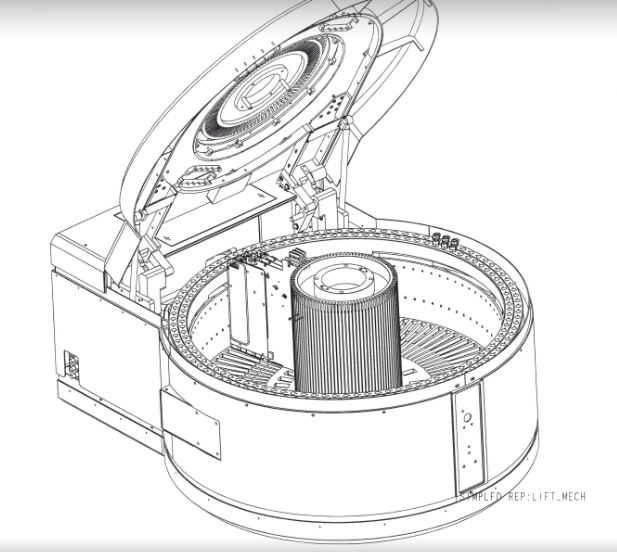

ATE Test Head
Challenge
- Precision Machining and casting
- Stack-up tolerance - extremely tight tolerance required
- Cover design - sheet metal
- Mechanism to counterbalance lid during opening/closing
- Liquid cooled system for pin-card
- Reduced footprint serviceability and reliability are primary importance
- Light and appealing enclosure
- Floating pin-card to remove closed loop tolerance
- Simplified design, reduced components count to half for ease of assemply, ease of service
- Used gas spring for counterbalancing, automatic latch to lock lid when opened
- Used high precision quick connect

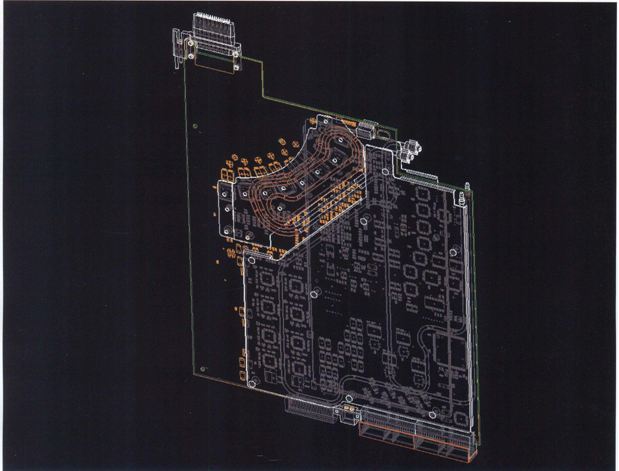

Liquid Cooled Pin Card
Challenge
- Cold Plate design
- Tight real estate
- Precision tolerance Pogo Block
- Top and bottom connecting constraint
- Uneven thermal stress on PCB
- Packaging
- Pogo block design - floating
- Packaging design
- Special machining design for accurate pin location on Pogo Block
- Floating Pogo Block
- Cold-plate design - One main cold plate and one localized cold plate with more (liquid cooled) flow path

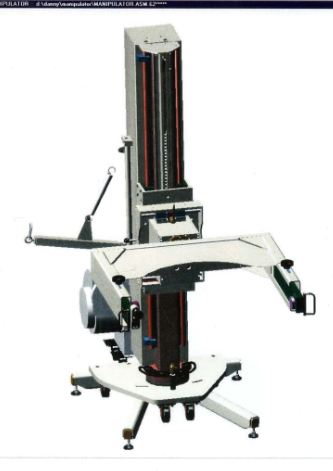

Manipulator
Challenge
- Seven Degrees Of Freedom
- Inexpensive to manufacture
- Strength to support and manipulate 500lb Test Head
- Counterbalance for test head weight
- Used off the shelf structural components
- Structural analysis
- Gearing design
- Lead Weight compartment in the center post
- Pro/E used for all mechanical development

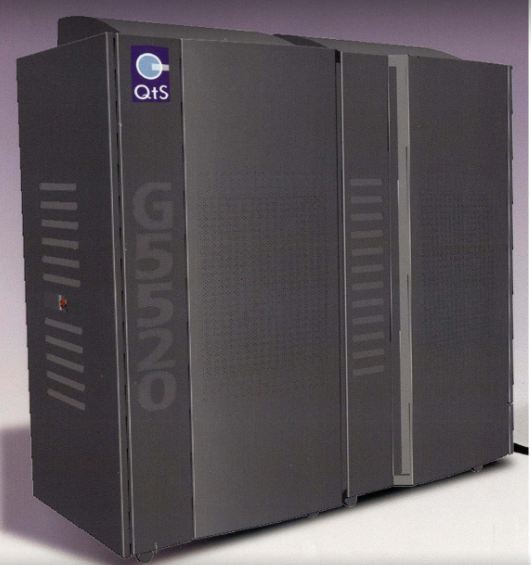

ATE Mainframe
Challenge
- Complex internal packaging
- fan cooling for internal PCBs
- Structurally strong
- Aesthetically appealing
- Ease of assembly
- Used Unistrut Frame with floating fastenings
- Cooling analysis; Designed openings for air in/out
- ID design based on preliminary sketch
- Designed for both mainframe and enclosure
- Pro/E used for all mechanical development
Cell Phone Charger
- Plastic Injection Mold design
- Packaging design
- Rapid prototyping
- Fabrication and assembly drawings for production
- Pro/E Wildfire used

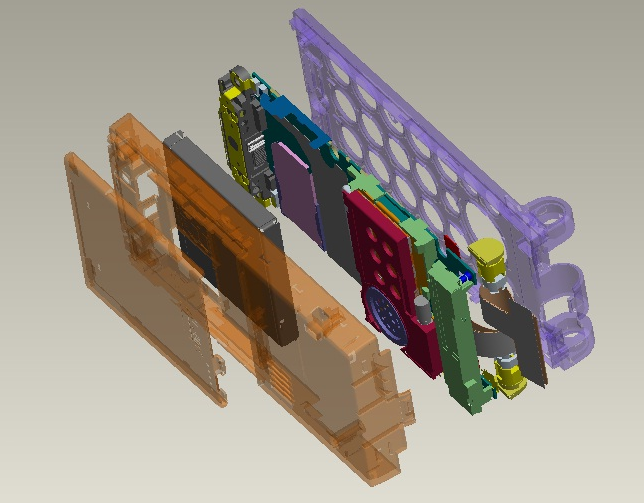

Mobile Phone
- Plastic Injection Mold design
- Rapid prototyping
- Fabrication and assembly drawings for production
- Used Pro/E Wildfire
